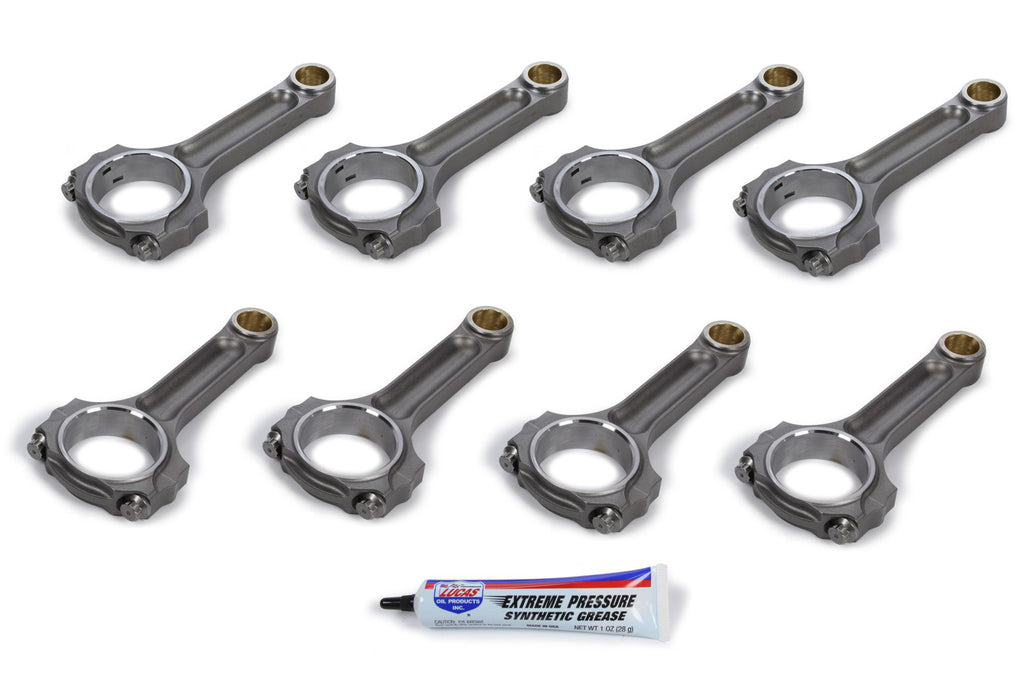

Oliver Speedway Series - LS 6.125" Forged I-Beam Connecting Rods - L6125STSW8
Oliver
$3,800.00
Forged 4340 AQ Chrome Moly alloy, parabolic beam design, 2X heat-treated, 7/16" cap screw bolts.

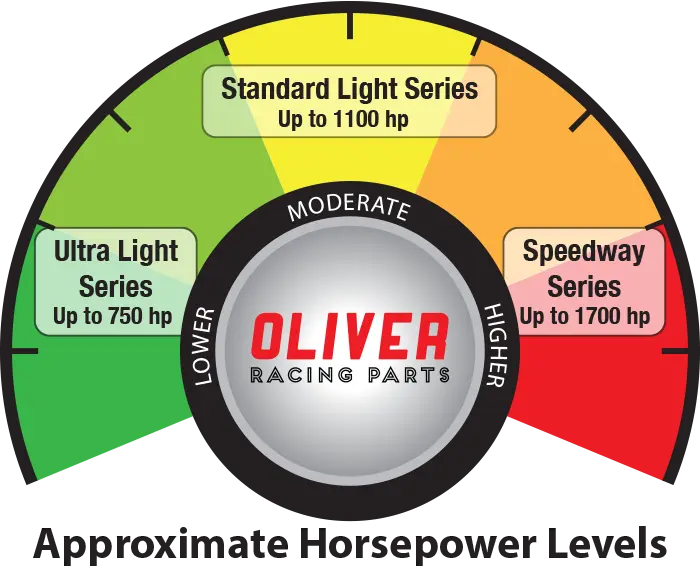

Use in severe-duty applications such as high-RPM, large CID late model dirt cars, forced induction, up to 8,200 RPM. Rated for upto 1700hp
|
Product Line
|
Speedway Series
|
|
Beam Style
|
I Beam
|
|
Stroker Clearanced
|
Yes
|
|
Rod Length (in)
|
6.125 in
|
|
Bushed / Press Fit Wrist Pin
|
Bushed
|
|
Small End Bore Diameter (in)
|
0.927 in
|
|
Small End Width (in)
|
1.000 in
|
|
Rod Journal Diameter (in)
|
2.100 in
|
|
Large End Bore Diameter (in)
|
2.225 in
|
|
Large End Width (in)
|
0.940 in
|
|
Fastener Style
|
Cap Screw
|
|
Fastener Manufacturer
|
ARP
|
|
Fastener Product Line
|
ARP2000
|
|
Fastener Diameter
|
7/16 in
|
|
Fastener Head Style
|
12 Point
|
|
Fastener Alloy
|
ARP2000
|
|
Fastener Material
|
Chromoly
|
|
Weight Matched
|
Yes
|
|
Material Processing
|
Shot-Peened
|
|
Forged
|
Yes
|
|
Alloy
|
4340
|
|
Material
|
Steel
|
|
Colour
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Set of 8
|
Product Data
Compatible Engines
LS Series
