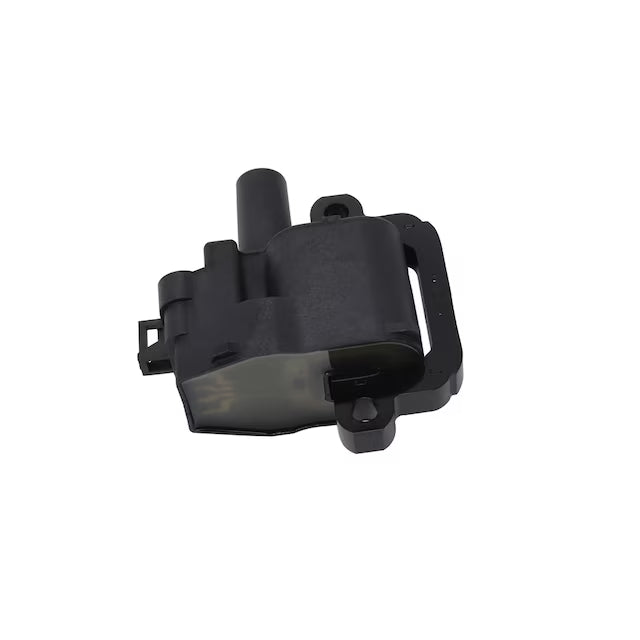

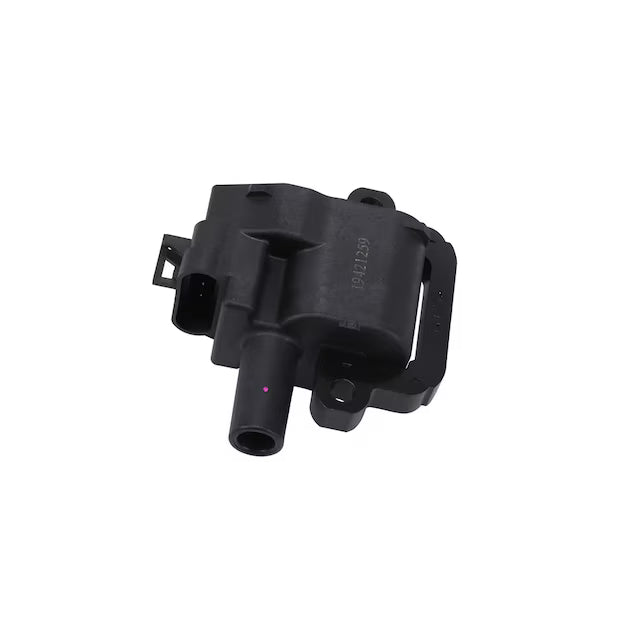

GM LS1 Ignition Coil - 19421259
Pickup available at 13 Lodge Drive, East Rockingham
Usually ready in 1 hour
GM Genuine Parts Ignition Coils are designed, engineered, and tested to rigorous standards, and are backed by General Motors. It increases electrical system voltage to help ignite the air/fuel mixture as the starting and charging system starts the engine, maintains the battery's charge, and provides power to the electrical accessories while the engine is running.
A GM Genuine Parts Ignition Coil uses pure copper windings to improve durability and provide higher resistance to internal shorts and dielectric breakdown. Because the number and shape of the laminations determine the output characteristics of an ignition coil, ACDelco ensures that the silicone steel plates surrounding the coil correctly match the original part size and number.
Since steel laminations work best when they are new, shiny, and clean, ACDelco laminations are coated to hinder corrosion and many feature molded plastic protection to help ensure that nothing is exposed. GM Genuine Parts are the true OE parts installed during the production of or validated by General Motors for GM vehicles.
We also sell LS1 Ignition coil harnesses which can be found here
|
Mounting Bracket Included |
No |
|
Mounting Hardware Included |
No |
|

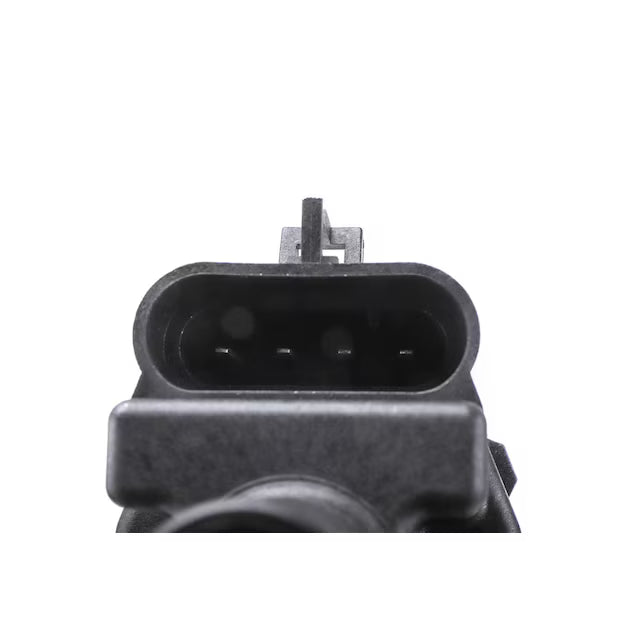

Terminal Type |
Blade |
|
Mount Type |
Bolt |
|
Classification |
OE |
|
Connector Gender |
Female |
|
Terminal Gender |
Male |
|
Mounting Hole Quantity |
2 |
|
Terminal Quantity |
4 |
|
Voltage |
12 DC |
|
Coil Wire Included |
No |
|
Oil Filled |
No |
|
Coil Type |
Coil Pack |
|
Ignition Type |
Distributorless |
|
Requires External Resistor |
No |
|
Mounting Position |
Coil On Plug |
|
Coil Shape |
Rectangular |
Compatible Engines
Looking for more parts to suit your engine?
GM 5.7L V8 Small Block LS1 Engine
