Improved Racing Aluminium Double O-Ring LS Oil Galley Plug - EGM-501

Improved Racing Aluminium Double O-Ring LS Oil Galley Plug - EGM-501

$46.00
Skip to product information
Improved Racing Aluminium Double O-Ring LS Oil Galley Plug - EGM-501

Improved Racing Aluminium Double O-Ring LS Oil Galley Plug - EGM-501

Improved Racing

$46.00

This is an aftermarket, improved version of the GM 12573460  dumbbell.

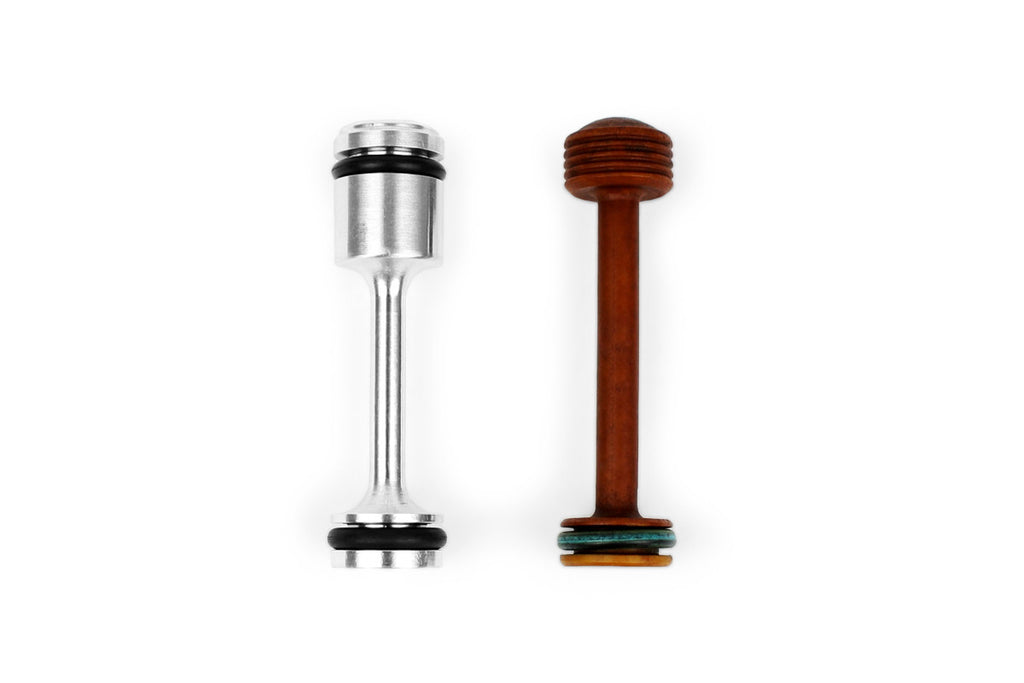

  • Direct replacement for plastic OEM barbell plug.
  • Precision Swiss CNC-machined from billet 6061-T6 aluminum.

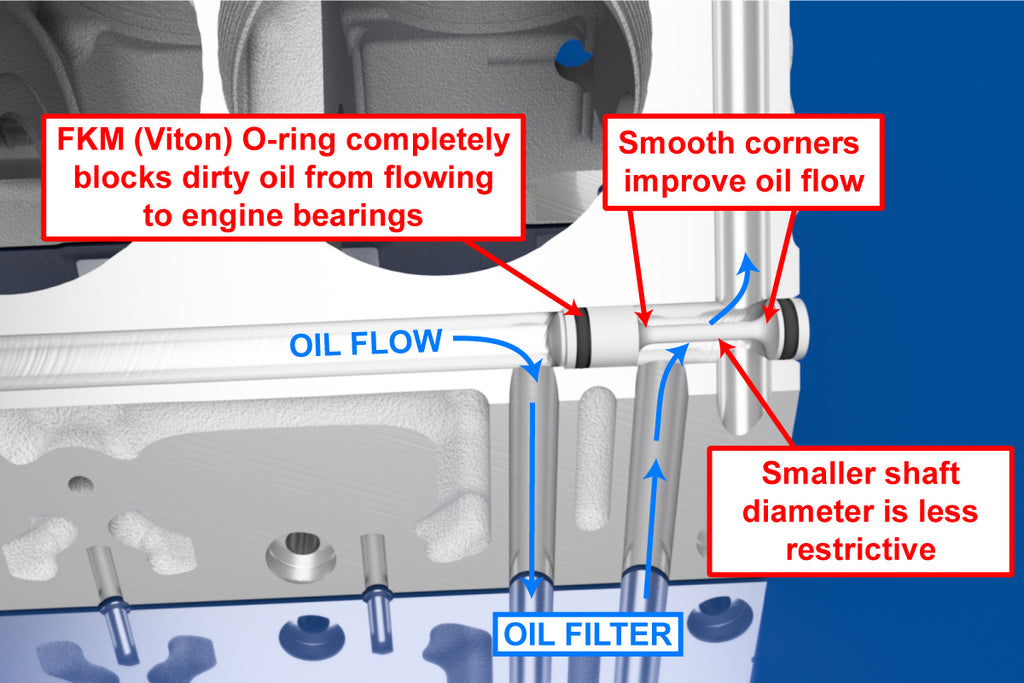

  • Designed to reduce fluid restriction and maximize oil flow.
  • Second O-ring completely seals the dirty side of the rear oil passage from the clean side, preventing dirty oil from flowing to the engine bearings.
  • FKM (Viton®) rubber O-rings are used for its ideal compression set (for a long-lasting seal), high temperature resistance, and excellent chemical compatibility with engine oils.
  • Threaded M4x0.7 hole allows for easy removal from engine block.
  • Made in the USA.
  • Lifetime Warranty.

Includes

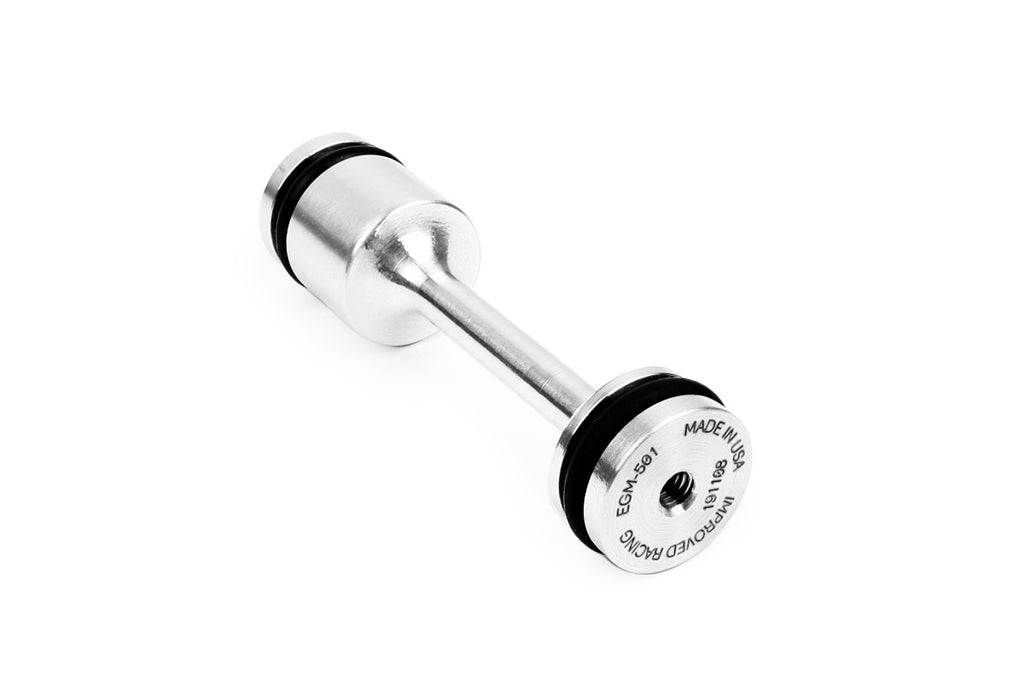

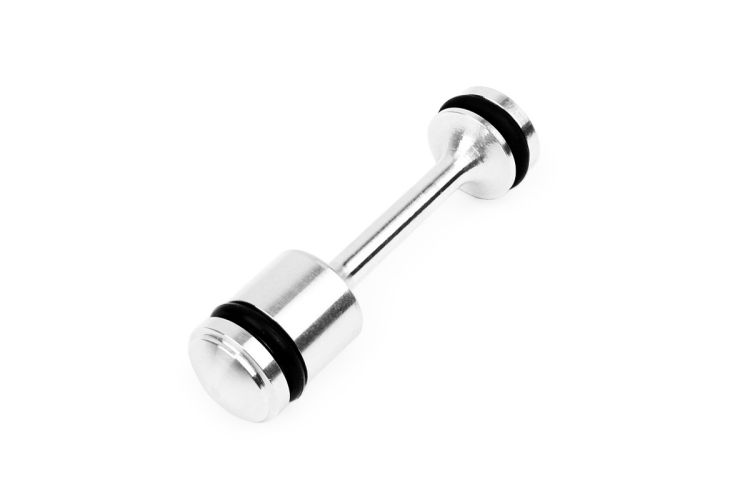

  • 1 x Swiss CNC-machined billet aluminum rear oil gallery plug "barbell."
  • 2 x AS568 Dash Number 111 Size FKM (Viton) O-rings.

Applications

  • Do not use with the LSX engine block. These engine blocks have a slightly different oil passage and use a rear cover design that will result in interference with the oil passage plug, resulting in leaks.
  • Compatible with most General Motors Gen III and IV LS series Engines, except the LSX block.

Part Number: EGM-501

Product Manual

Product Data

Compatible Engines

LS Series
