Haltech
Haltech iC-7 OBD-II Colour Display Dash Size: 7in
Engines: LS Series
Check fitment and quantity before ordering.
Need help?
Contact CJs to confirm fitment.
Found a better price? Submit a price match request
Overview
Suits: Preconfigured to connect directly (via CAN) to most late model vehicles (approx 2008-on) using the factory OBD-II port.

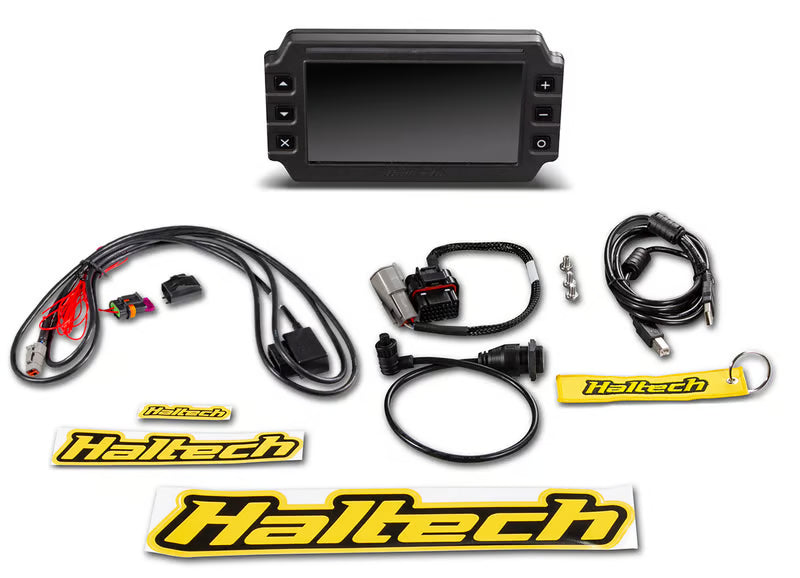

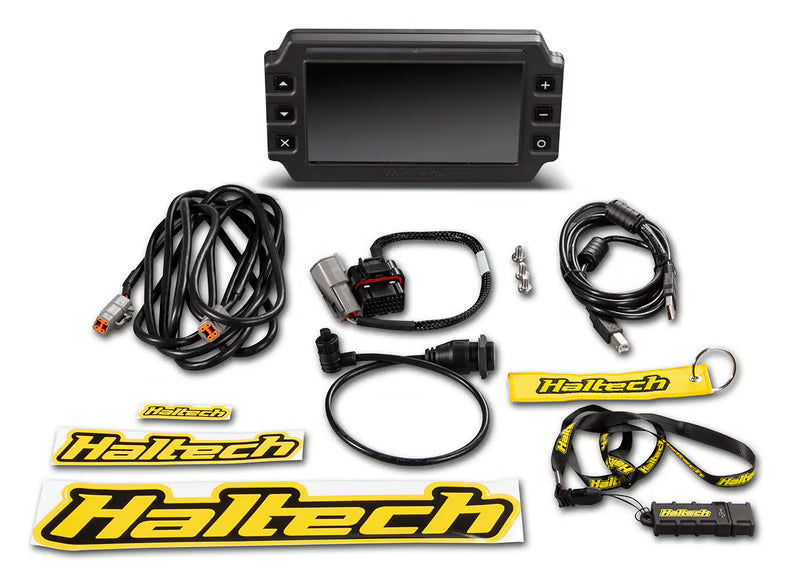

Includes: Haltech iC-7 Display Dash, 34 Pin main connector harness (includes spare pins for input wiring), OBD-II to DTM-4 CAN cable 1.4m (55in), USB to M5 right angle cable, USB Cable, Mounting Screws, Quick Start Guide, Haltech stickers and a fabric keyring tag
Haltech Guides:
- Quickstart Guide
- Wiring Diagram
DASH OVERVIEW

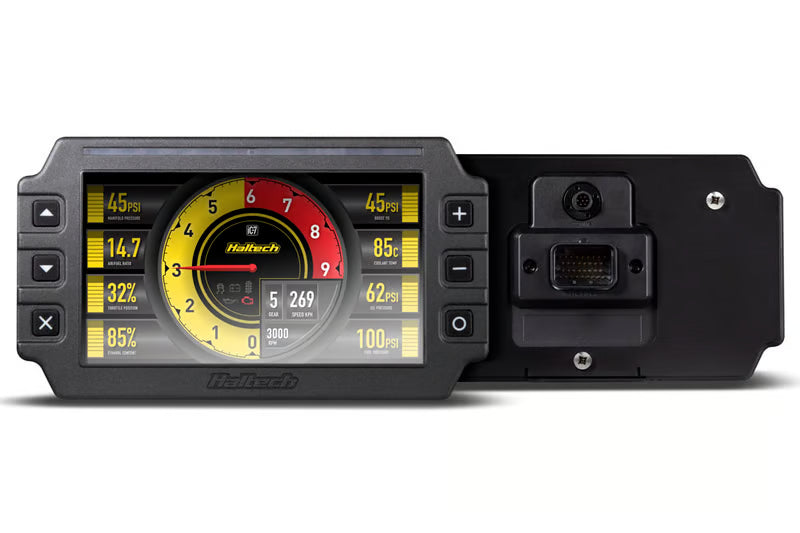

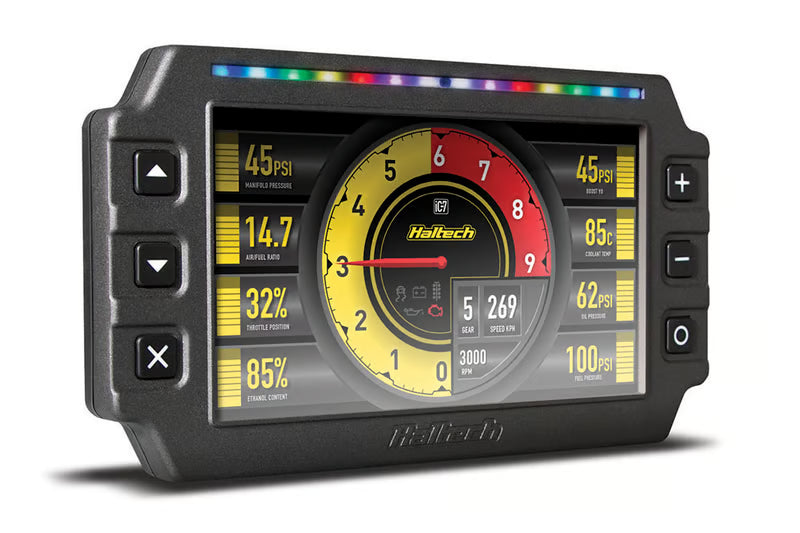

With a crisp, clear and full colour display, the all new Haltech iC-7 Display Dash lets you see things in a brand new way.
Designed and manufactured in Australia with motoring enthusiasts in mind, the iC-7 offers market-leading features in a unique, state-of-the-art package.
Featuring auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the iC-7 connects directly to all current Haltech ECUs via a CAN network. The OBD-II iC-7 is preconfigured to connect directly (via CAN) to most late model vehicles (approx 2008-on) using the factory OBD-II port.
- Ideal replacement for individual analogue gauge clusters.
- Easy to install and configure.
- User adjustable brightness control with automatic dimming.

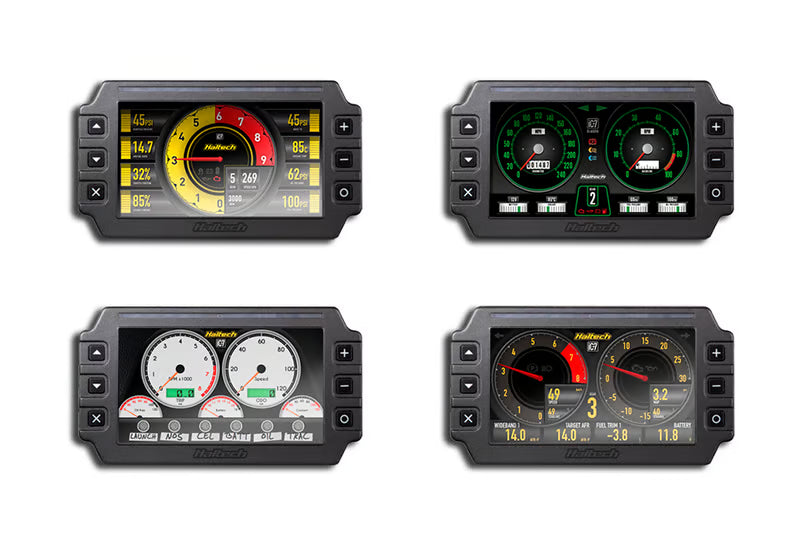

- User configurable channels, units and alarms.
- User definable Inputs & Outputs
- 4 x Analog Voltage Inputs (AVI)
- 4 x Digital Pulsed Inputs (DPI)
- 4 x Digital Pulsed Outputs (DPO)
- 14 programmable, seven colour shift light LEDs.
- On-board datalogging (512MB)
- Controlled via easily accessible, face-mounted control buttons.
- Configuration via Haltech software and USB cable.
- IP64 (Dust-tight and protected against water splashes).
Compatible engines
LS Series
Fitment
Confirm fitment before ordering. Contact us if you need help matching parts to your build.
