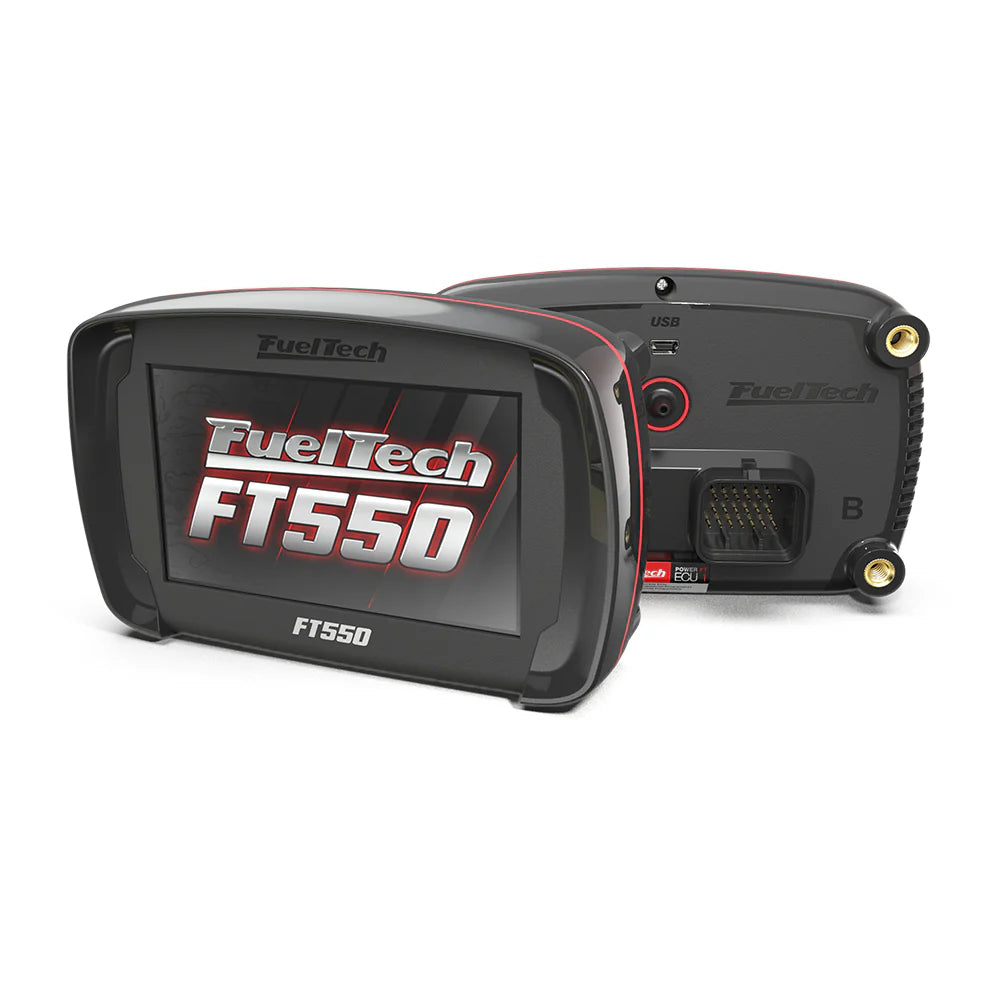

FuelTech FT550 EFI System ECU

FuelTech FT500 SFI

Fully Programmable Standalone ECU

The FuelTech FT500 SFI is a fully programmable standalone ECU that gives you complete control over fuel and ignition tables in real time. Tune your engine directly through the built-in 4.3" colour touchscreen or via FTManager software with high-speed USB communication on both models.

Main fuel and timing tables can be configured in basic 2D or advanced 3D mode with configurable break points. Compatible with any Otto-cycle engine using indirect injection - 2 or 4 stroke, up to 12 cylinders or 4 rotors - running gasoline, ethanol, methanol, CNG, nitromethane, and other compatible fuels.

Electronic throttle control is fully integrated and configured directly from the display - no additional computer or module required. Safety alerts can be programmed for dangerous conditions like over-rev, low oil pressure, and high coolant temperature, with the option to limit RPM or shut off the engine automatically.

Five fully independent maps allow different settings for multiple engine or vehicle configurations. Ignition control supports distributor or crank trigger with single, double, or COP coils in wasted spark or sequential mode. Fuel injectors operate in sequential, semi-sequential, or multipoint mode with individual cylinder trim and adjustable injection phase angle. The Favourites menu provides quick access to key tuning parameters, and the fully configurable dashboard lets you customise display size, reading types, and gauge ranges.

Inputs & Specifications

• 103 psi internal MAP sensor (7 bar absolute), 14.7 psi vacuum and 88 psi positive pressure (boost)

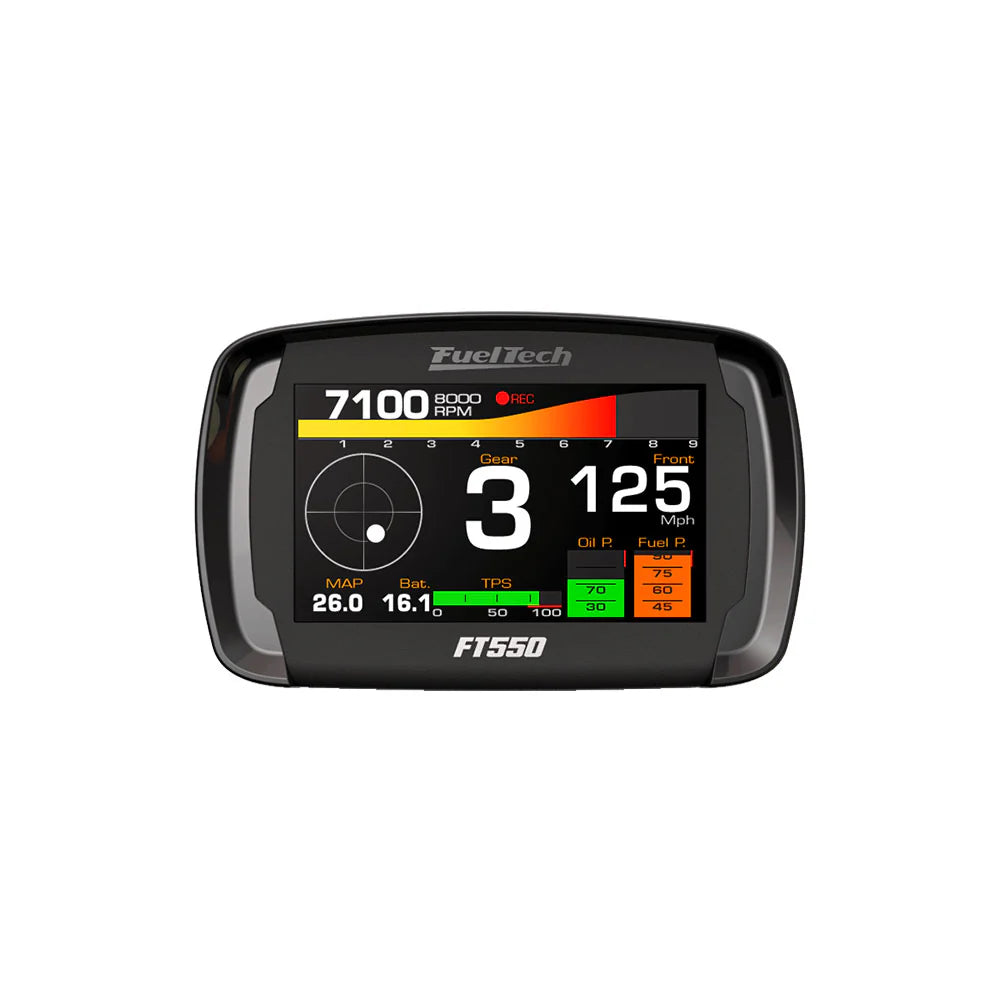

• 4.3" Touchscreen with 16.8 million colours
• 375 MIPS processor (millions of instructions per second)
• Otto cycle engine control: 1, 2, 3, 4, 5, 6, 8, 10 and 12 cylinders and 2, 3 and 4 rotors
• 2 injector banks (staged injection banks A and B)
• Injection time resolution: 0.001 ms
• Ignition angle resolution: 0.01°
• 11 fully configurable input channels (intake air temp, coolant temp, fuel & oil pressure, TPS, external MAP, electronic throttle, pedal position, etc.)
• 2 fixed inputs (RPM signal and cam sync sensor)
• 4 outputs to control stepper motor (idle air control valve, etc.)
• 20 configurable output channels (fuel, ignition and auxiliary)
• Distributor and crank trigger ignition control
• FuelTech CAN port (communication with FuelTech ECUs, Racepak IQ3 dashes and VNET Networks)
• Compatible with Racepak AIM
• Working temperature: -10°C to 60°C
• Editable sensor reading scales

Functions

• Sequential, semi-sequential and multipoint fuel control
• Wasted spark and sequential ignition control
• Idle speed control by electronic throttle, stepper motor, ignition timing and PWM valve
• Main fuel map, idle speed and fuel enrichment by MAP or TPS
• Real-time programmable via screen or PC through FTManager Software
• Individual fuel and ignition trim per cylinder/rotor
• Fuel and ignition maps by 2D table or 3D table (32×32 points)
• Configurable fuel and ignition map resolution (via FTManager Software and USB)
• Fuel injection phase angle control
• Fuel enrichment and decay adjust
• Dead-time compensation table by battery voltage
• Ignition timing compensation by boost/vacuum and throttle position (TPS)
• Fuel compensation by air and coolant temperature and by battery voltage
• RPM limiter by fuel and ignition
• Deceleration fuel cut-off
• Exclusive Drag Race features: burnout mode, 2-step, 3-step, timing table for rev launch, 2-step by wheel speed, time-based RPM limiter by ignition cut or timing retard, time-based fuel enrichment, time-based speed/driveshaft RPM control
• Control of up to two cooling fans by coolant temperature
• Prime pulse and post-start enrichment maps
• Fuel pump prime control
• VTEC control
• Progressive nitrous control with timing retard and fuel enrichment
• User and tuner protection passwords
• Audible and visual alert, including external shift light control
• Check control with on-screen warning, safety mode and engine shut-off by exceeded pressure, RPM, coolant temperature, duty cycle, oil and fuel pressure
• Display brightness and sound warning adjusts
• 5 memory positions to save different adjusts and maps

📦 Box Content

• 1 × FT500 ECI

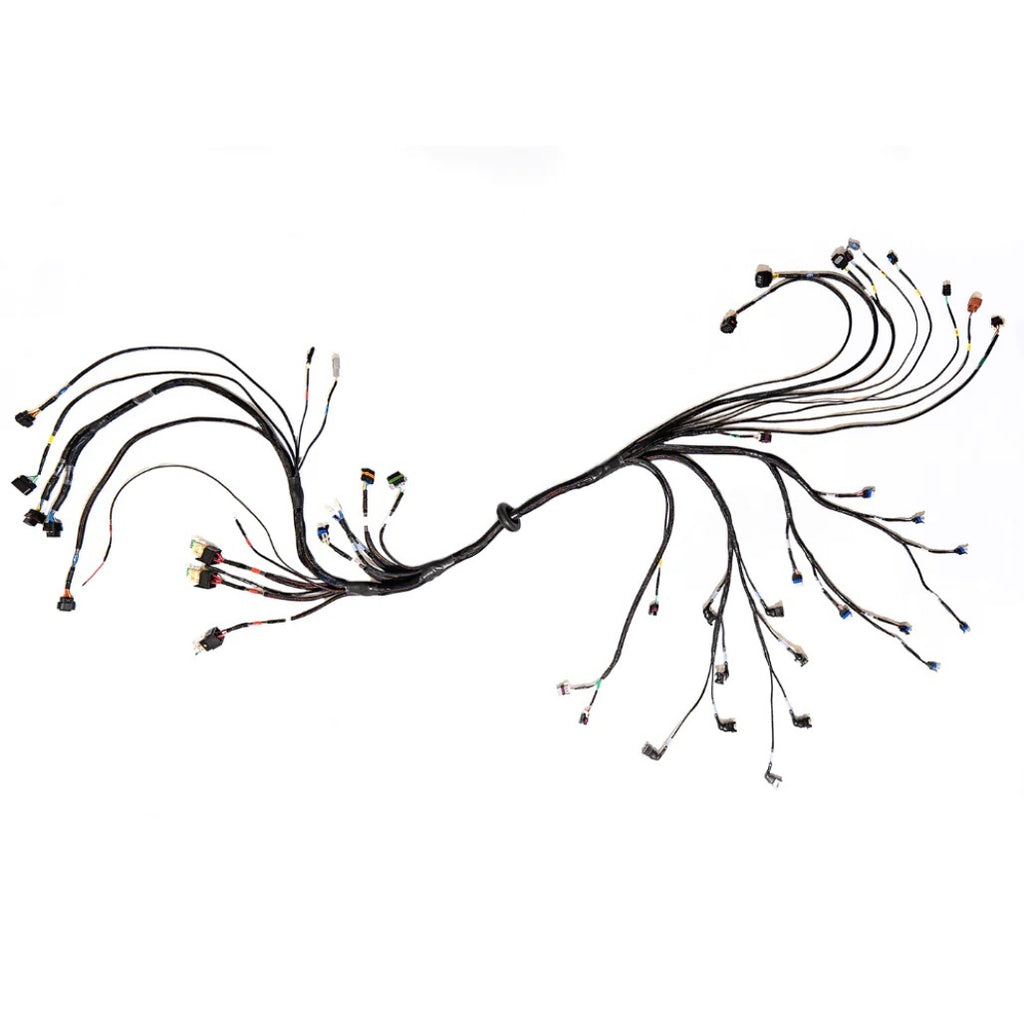

• 1 × Wiring harness
• 1 × USB flash drive (contains FTManager Software, FT guides, etc.)
• 1 × Mini USB cable
• 1 × FT500 installation guide
• 1 × Smart clip support

All specifications, features, and technical data sourced from official FuelTech documentation.
